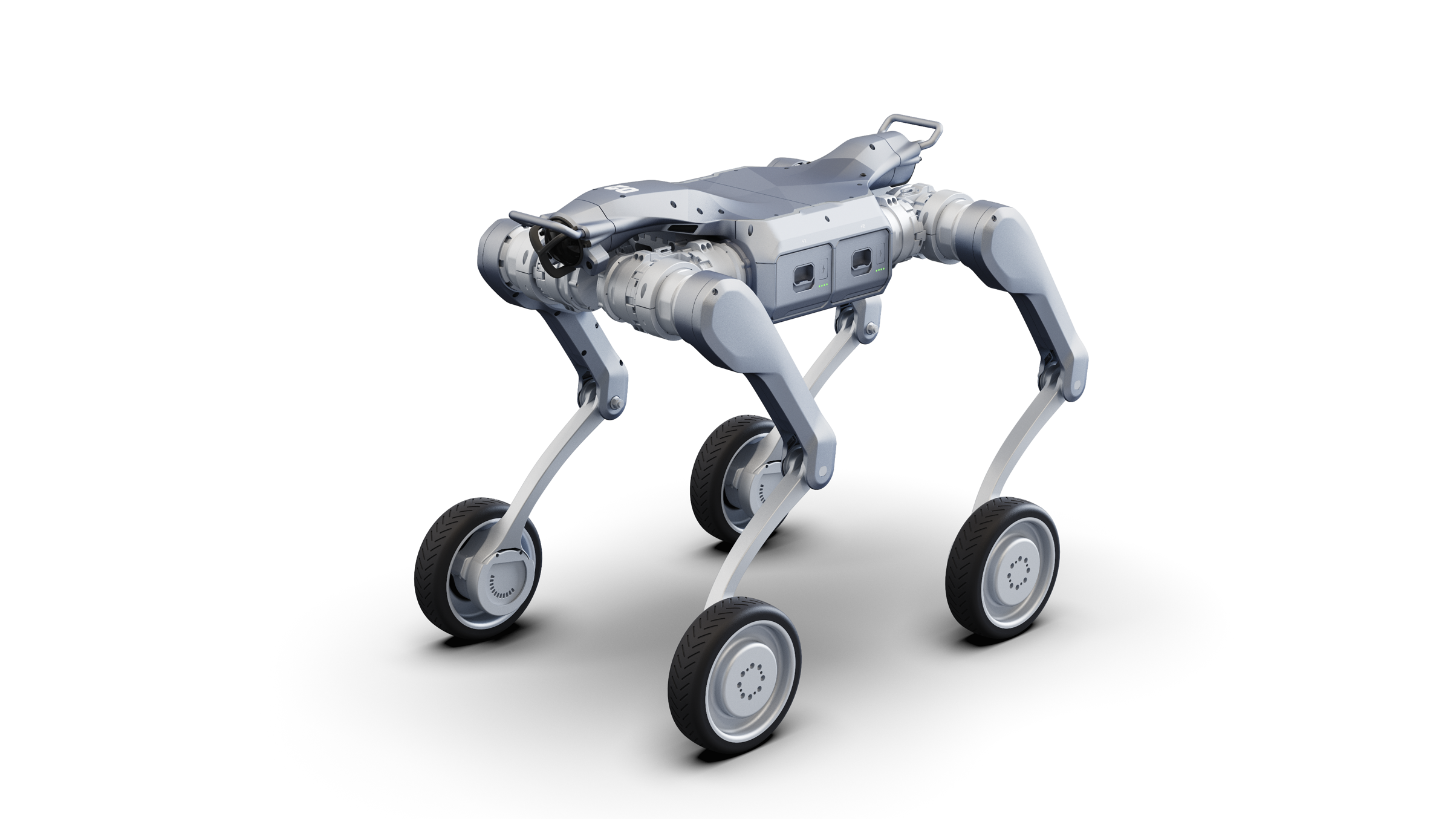

Unitree A2 / A2-W Quadruped Robot

The Unitree A2 is an industrial-grade legged robot designed for agility, endurance, and heavy payloads. It is built to conquer rugged terrain with ease and is suitable for logistics, industrial inspection, and emergency rescue.

Key Features

• Agile & Swift: Lightweight design with extended endurance.
• Zero Blind Spots: Equipped with 2 industrial LiDARs (front & rear) and an HD camera for greater accuracy.
• Dual Battery System: Hot-swappable dual batteries for unlimited runtime.
• High Payload: Industrial-grade standard for heavy payloads.

Performance Specifications

• Dimensions (Standing): 820mm x 440mm x 570mm
• Weight (with battery): ~37 kg
• Max Standing Load: ~100 kg
• Continuous Walking Load: ~25 kg
• Speed: 0–3.7 m/s (Up to ~5 m/s)
• Battery Life: >5 hours (No Load), >3 hours (25kg Load)
• Slope Climbing: ~45°
• Stair Climbing: Max step height 30cm

Computing & Sensing

Standard Computing: 8-Core high-performance CPU (platform) + Intel Core i7 (user development).

Sensing: LiDAR x 1 + HD Camera x 1 (Standard). Optional expansion for more.

Connectivity: Wi-Fi 6, Bluetooth 5.2, 4G/GPS (Optional).

Interfaces: RS485, CAN, Gigabit Ethernet, USB3.0-TypeC.

Versions

A2: Contact for pricing.

A2-W: Contact for pricing.

A2-PRO: Custom Industry Solutions. Contact for pricing.

A2-PRO-W: Custom Industry Solutions. Contact for pricing.
