G1 humanoid robot
Demonstrations available available in the UK. UK stock available on certain models for fast shipping

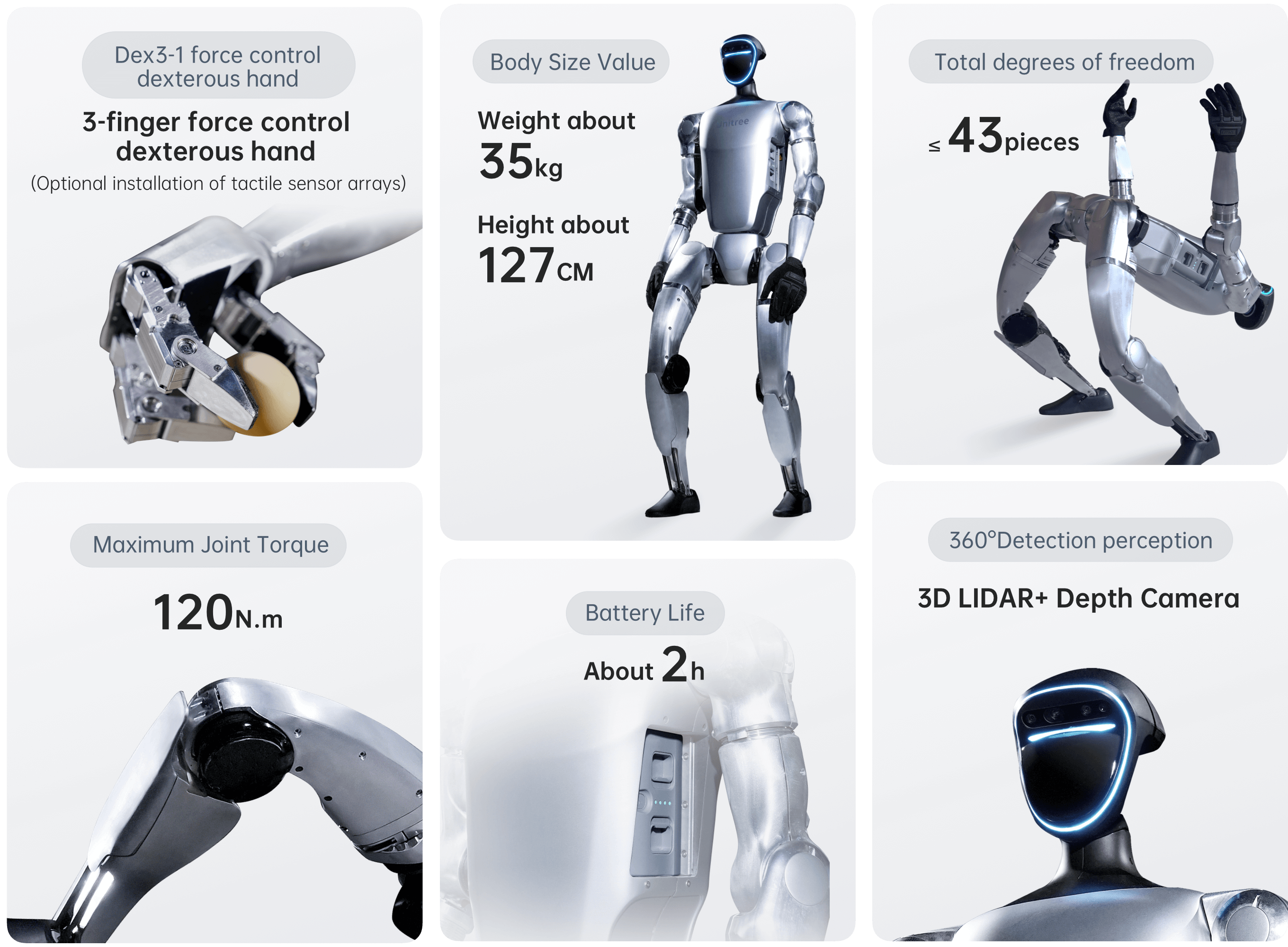

Introducing Unitree's inaugural general-purpose humanoid robot, the Unitree G1, a pioneering marvel that redefines the boundaries of robotic innovation. Boasting an advanced powertrain, this cutting-edge creation stands at the forefront of speed, power, maneuverability, and flexibility in the realm of robotics. With a stable gait and remarkably flexible movement capabilities, the Unitree G1 autonomously navigates complex terrains and environments, seamlessly transitioning between walking and running. Its sophisticated sensory suite, featuring a combination of 3D LiDAR and depth camera technology, ensures real-time acquisition of high-precision spatial data, enabling panoramic scanning for unparalleled situational awareness. The Unitree G1 sets a new standard in general-purpose humanoid robotics, embodying a harmonious blend of agility, autonomy, and sensory prowess.
The World's most affordable research robot.

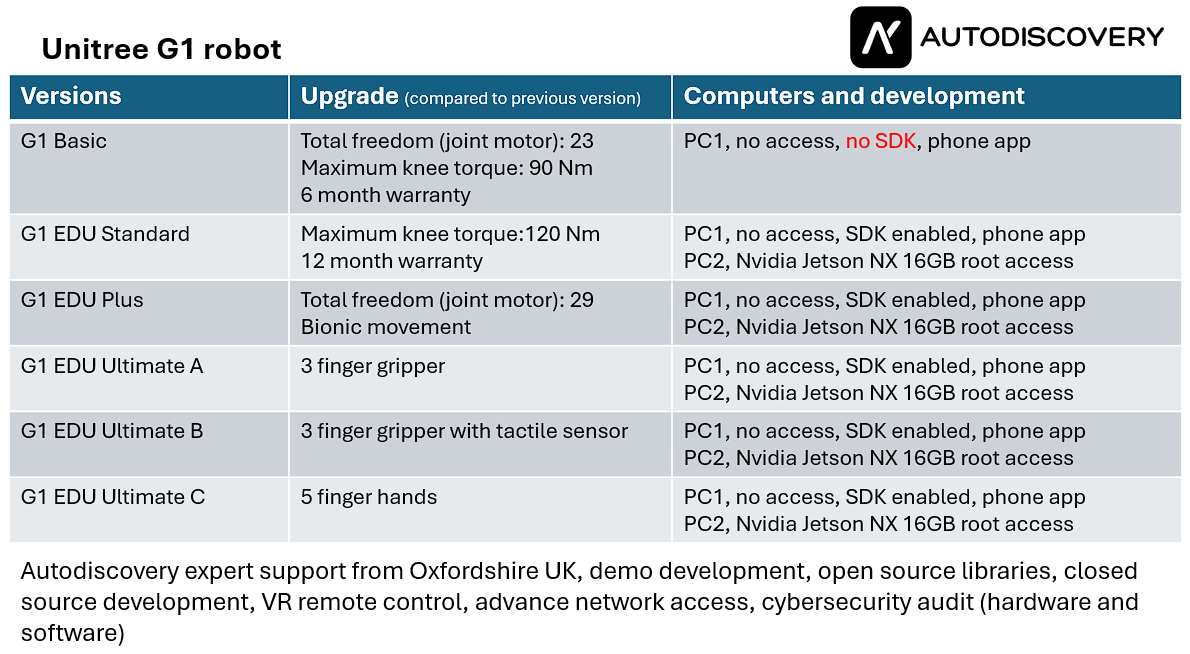

Model Comparison
| Feature | G1 Basic | G1 EDU (U1) | G1 EDU (U2) | G1 EDU (U3) | G1 EDU (U4) | G1 EDU (U5) | G1 EDU (U6) | G1 EDU (U7) | G1 EDU (U8) |
|---|---|---|---|---|---|---|---|---|---|
| Height/Width/Thickness (Stand) | 1320x450x200mm | 1320x450x200mm | 1320x450x200mm | 1320x450x200mm | 1320x450x200mm | 1320x450x200mm | 1320x450x200mm | 1320x450x200mm | 1320x450x200mm |
| Height/Width/Thickness (Fold) | 690x450x300mm | 690x450x300mm | 690x450x300mm | 690x450x300mm | 690x450x300mm | 690x450x300mm | 690x450x300mm | 690x450x300mm | 690x450x300mm |
| Weight (With Battery) | About 35kg | About 35kg | About 35kg | About 35kg | About 35kg | About 35kg | About 35kg | About 35kg | About 35kg |

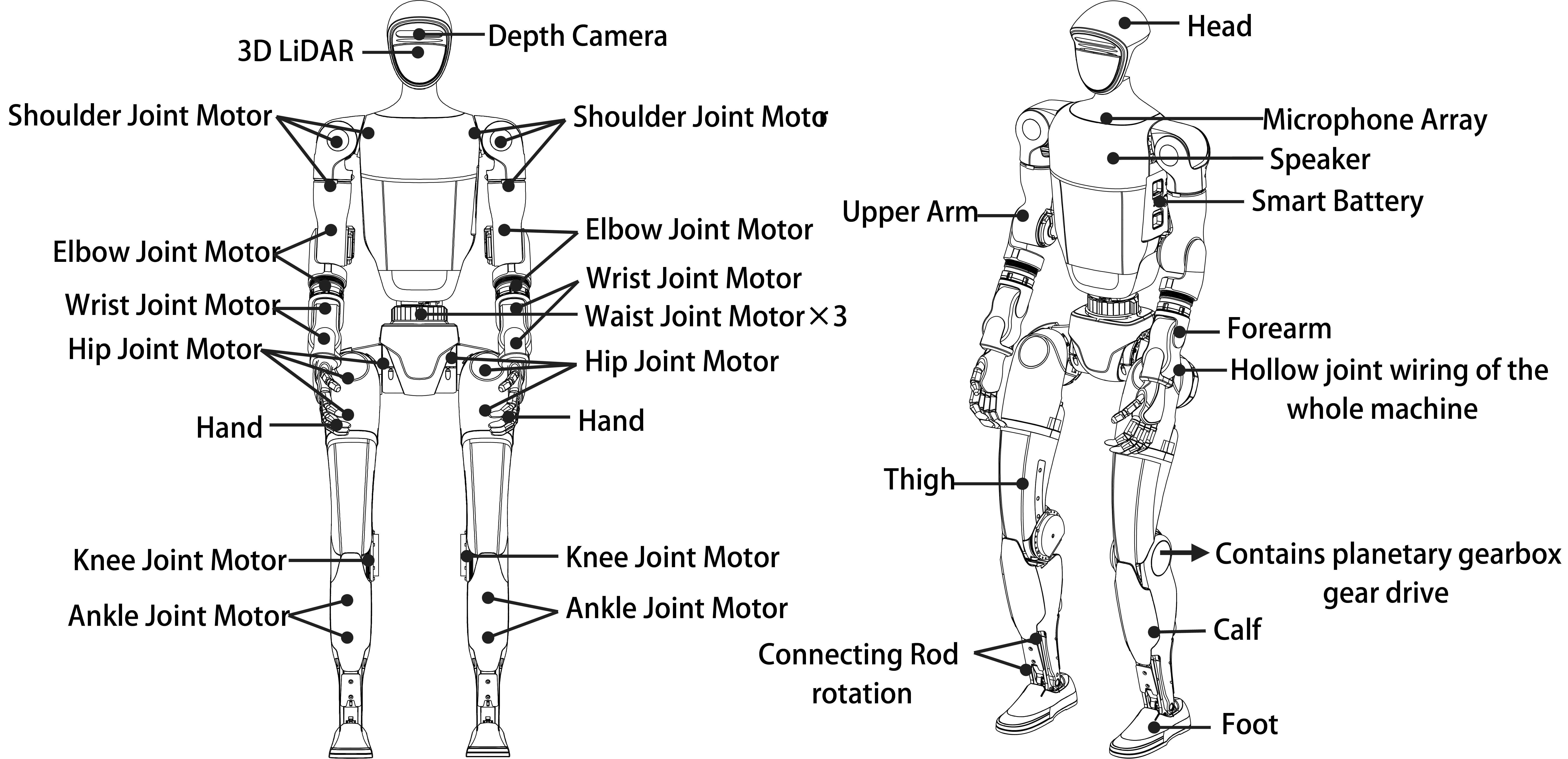

| Total Degrees of Freedom (DOF) | 23 | 23 | 29 | 43 | 43 | 41 | 41 | 41 | 41 |
| Single Leg DOF | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 |
| Waist DOF | 1 | 1 | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
| Single Arm DOF | 5 | 5 | 7 | 7 | 7 | 7 | 7 | 7 | 7 |
| Secondary Development | / | YES | YES | YES | YES | YES | YES | YES | YES |
| Single Hand Type | / | / | / | Dex3-1 (No tactile) | Dex3-1 (33 tactile sensors) | 5 Fingers (Inspire RH56DFQ) | 5 Fingers (Inspire RH56DFTP) | 5 Fingers (BrainCo Revo 2 Basic) | 5 Fingers (BrainCo Revo 2 Touch) |
| Max Torque (Knee) | 90N.m | 120N.m | 120N.m | 120N.m | 120N.m | 120N.m | 120N.m | 120N.m | 120N.m |
| Arm Maximum Load | ~2Kg | ~3Kg | ~3Kg | ~3Kg | ~3Kg | ~3Kg | ~3Kg | ~3Kg | ~3Kg |
| Waist Joint Range | Z±155° | Z±155°, X±45°, Y±30° | Z±155°, X±45°, Y±30° | Z±155°, X±45°, Y±30° | Z±155°, X±45°, Y±30° | Z±155°, X±45°, Y±30° | Z±155°, X±45°, Y±30° | Z±155°, X±45°, Y±30° | Z±155°, X±45°, Y±30° |
| Wrist Joint Range | / | / | P±92.5°, Y±92.5° | P±92.5°, Y±92.5° | P±92.5°, Y±92.5° | P±92.5°, Y±92.5° | P±92.5°, Y±92.5° | P±92.5°, Y±92.5° | P±92.5°, Y±92.5° |
| Computing Power Module | / | NVIDIA Orin 100Tops | NVIDIA Orin 100Tops | NVIDIA Orin 100Tops | NVIDIA Orin 100Tops | NVIDIA Orin 100Tops | NVIDIA Orin 100Tops | NVIDIA Orin 100Tops | NVIDIA Orin 100Tops |

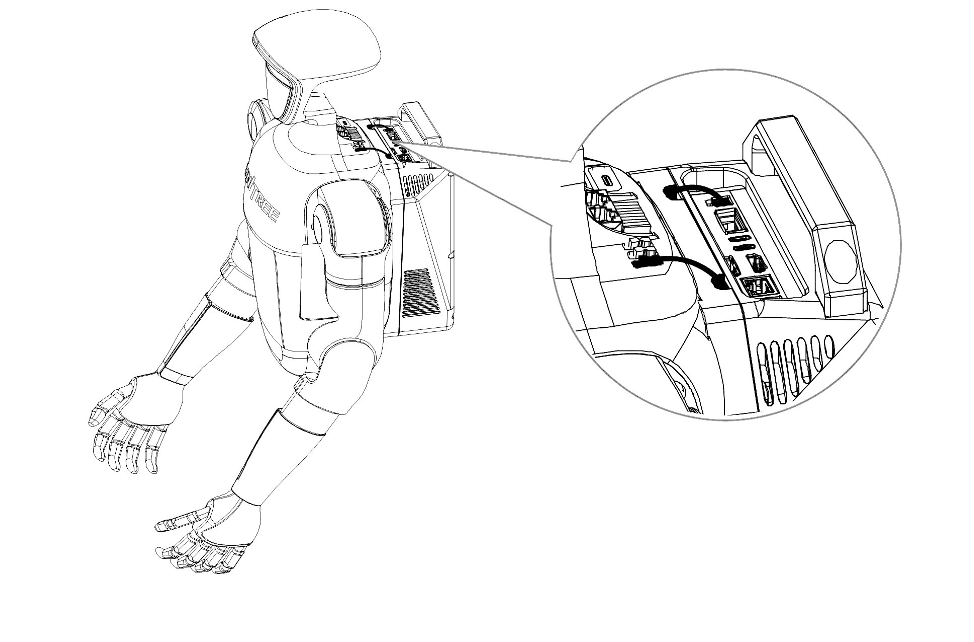

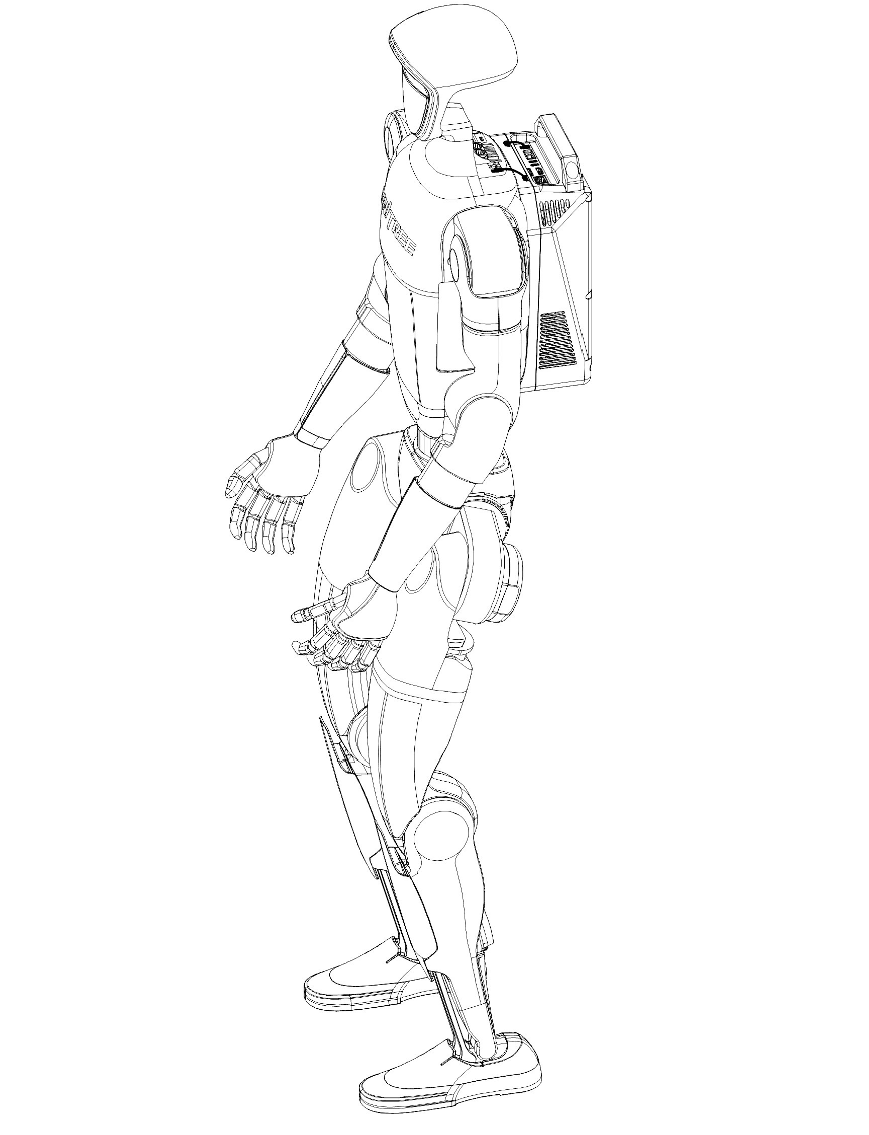

G1 Exclusive NVIDIA AGX Thor Back Expansion Module
Product Name: G1 Exclusive NVIDIA AGX Thor Back Expansion
Module
Unit Price: £12,000
Core Specifications
- Chip Configuration: 1 × NVIDIA Jetson AGX Thor
- Computing Power: 2070 TOPS
Key Features:
- Equipped with multiple I/O interfaces
- Dedicated expansion module for G1 humanoid robot
- High-performance computing expansion for AI and robotics applications
- Free professional installation on-site
